Details

• Platform

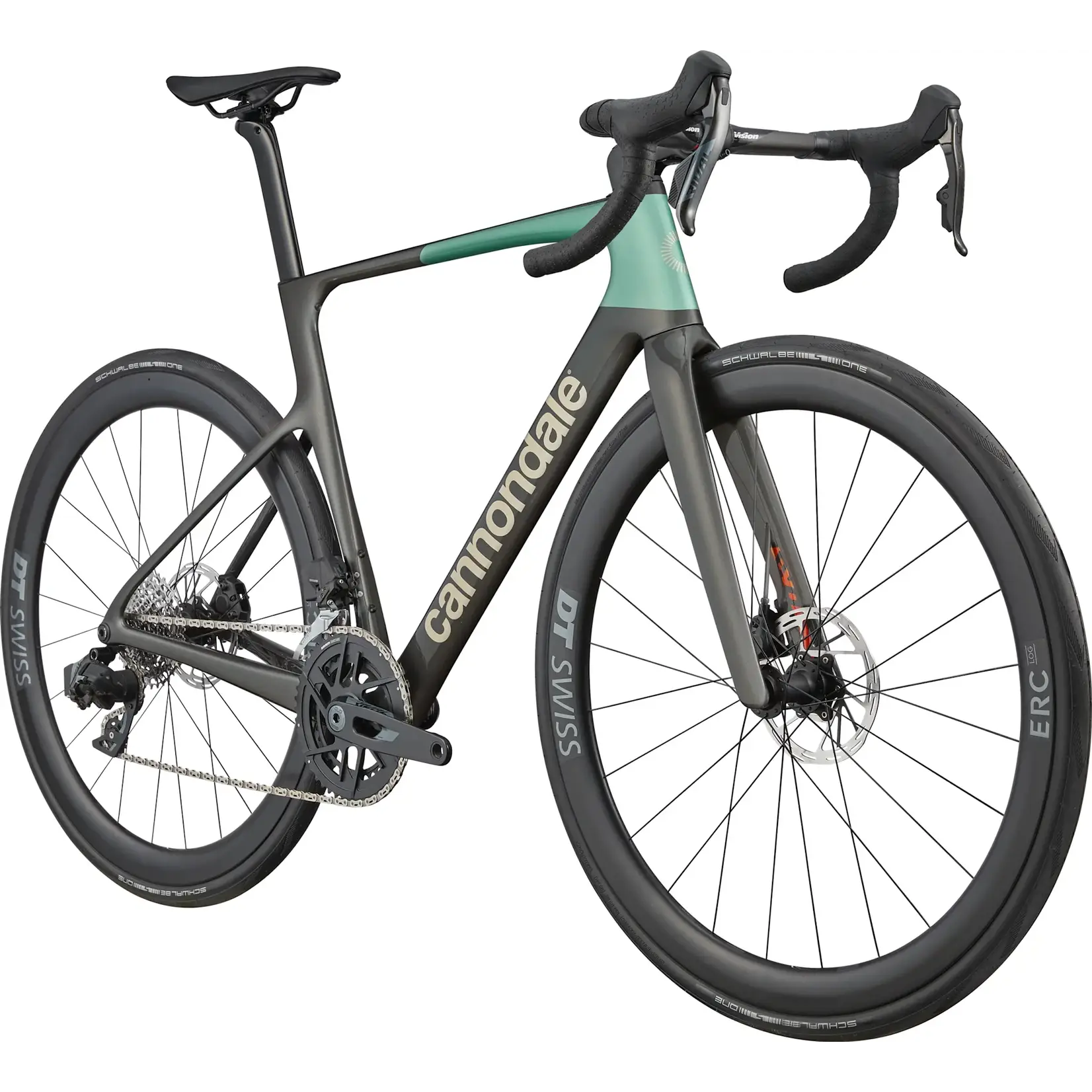

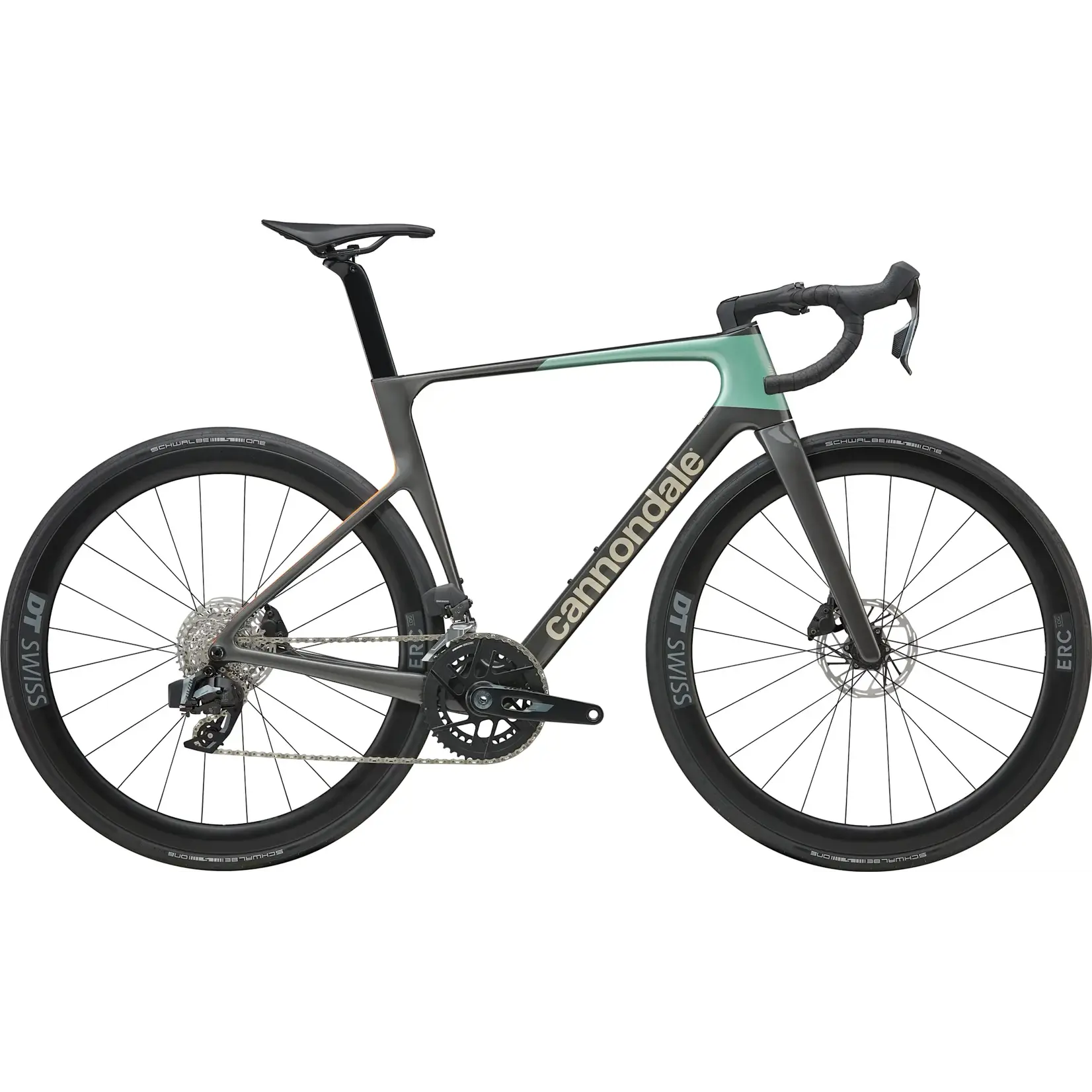

  SuperSix EVO
• Model Name

  SuperSix EVO 4
• Model Code

  C1108GU

Frameset

• Frame

  SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
• Fork

  SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Headset

  Integrated, 1-1/8" - 1-1/4"

Drivetrain

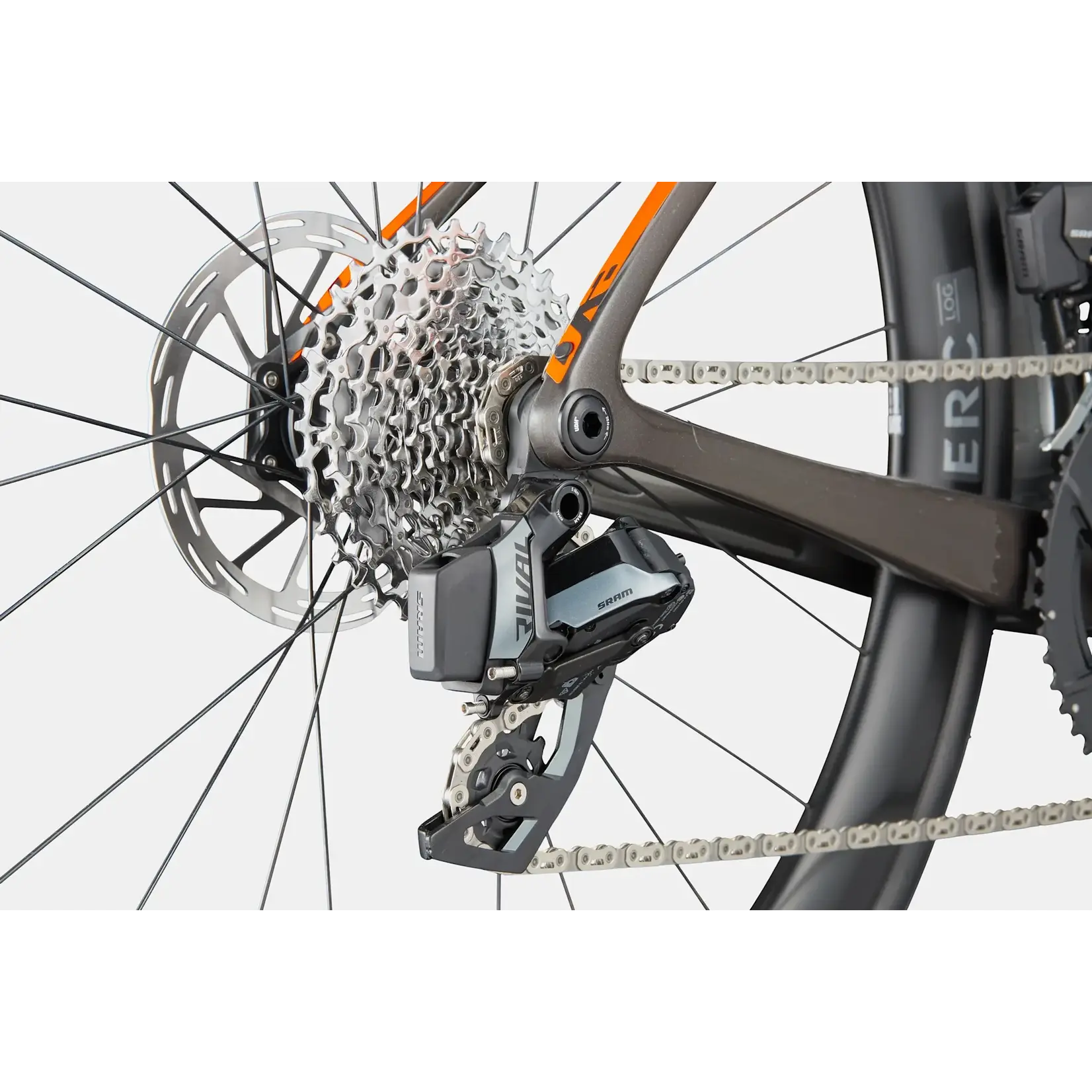

• Rear Derailleur

  SRAM Rival AXS, 12-speed
• Front Derailleur

  SRAM Rival AXS
• Shifters

  SRAM Rival AXS, 2x12-speed
• Chain

  SRAM Rival, 12-speed
• Crank

  SRAM Rival AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
• Rear Cogs

  SRAM Rival XG-1250, 10-36, 12-speed
• Bottom Bracket

  SRAM DUB BSA

Brakes

• Brakes

  SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
• Brake Levers

  SRAM Rival AXS hydraulic disc

Wheels

• Rims

  DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
• Spokes

  DT Swiss Competition
• Tire Size

  28
• Wheel Size

  700c
• Hubs

  (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
• Tires

  Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability)

Components

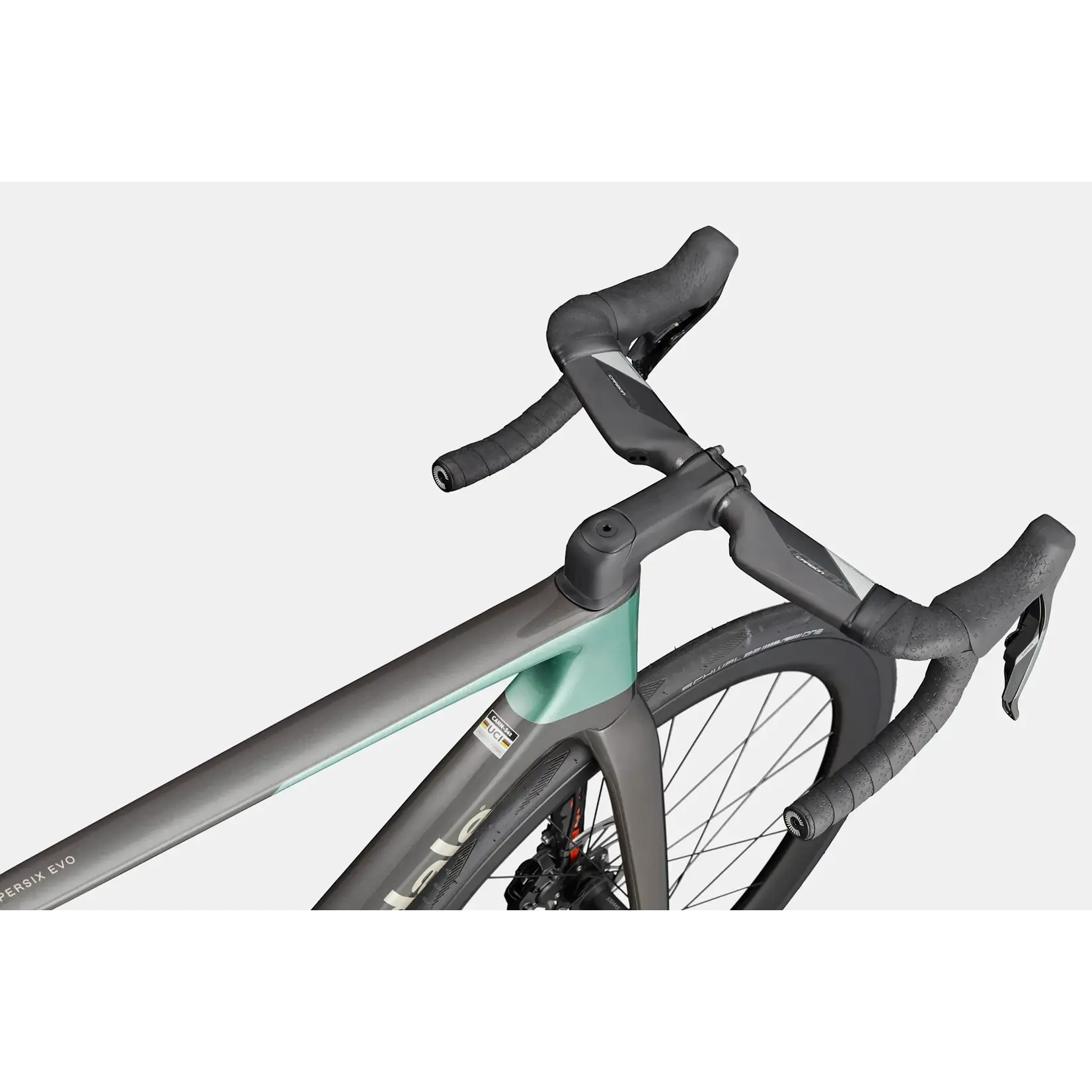

• Handlebar

  Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Fizik Vento Antares R7, 140mm
• Seatpost

  Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)

Extra

• Extra 1

  Tubeless valves, SRAM AXS charger, Conceal Stem accessory mount
